The cross-country fibre is used in the reflectometric measurement of fibre optics (loss, length, etc.). The fibre is used to eliminate the impact of the dead zone of the reflectometer and the starting pulse on the measurement.

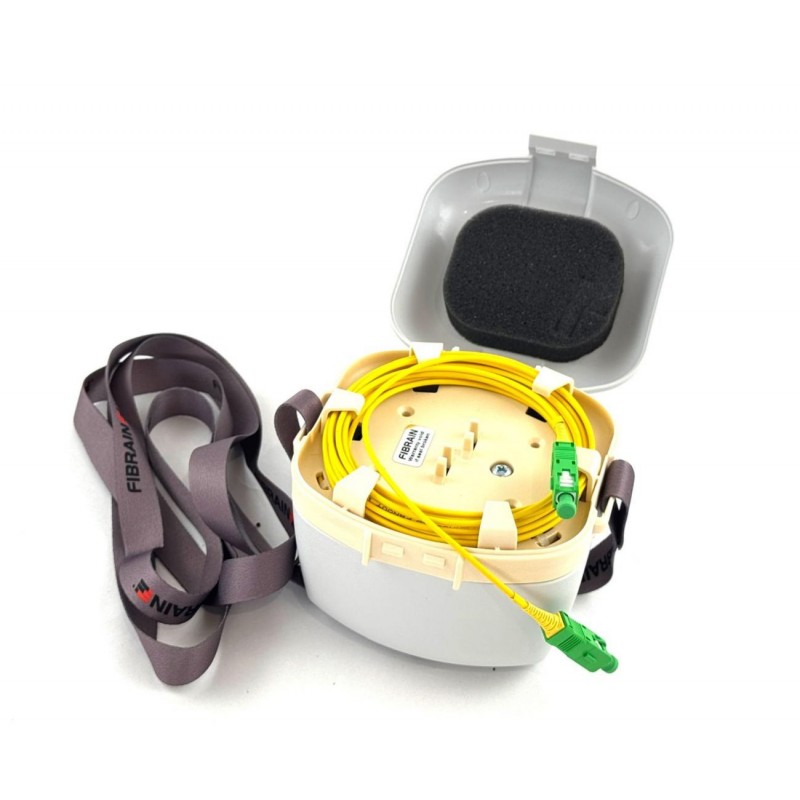

The Fibrain is placed in a BOX housing with a built-in magnet. Such a solution is not only the handiness and convenience of transport, but also the ability to attach the runway to some metal surfaces (e.g. cabinet housing).
| Technical parameters | |
| Type of fibre | G657A1 |
| Length [m] | 20w |
| Length of the input fibre output [m] | 1,5 |
| Losses of intrusive (max.) [dB/km] | For 1310nm: ?0.35 For 1550nm: ?0.22 |
| Losses of intrusive losses on the connector [dB] (IEC 61300-3-4) | ?0.1 |
| Reflective losses on the connector [dB] (IEC 61300-3-4) | ?65 (APC) |
| Resistance to | Crushing: up to 1000N (for removals only) |
| General parameters | |
| Dimensions (width x height) [mm] | 107 x 86 |
| Working conditions | Ambient temperature: -40 to 55 [°C] |
